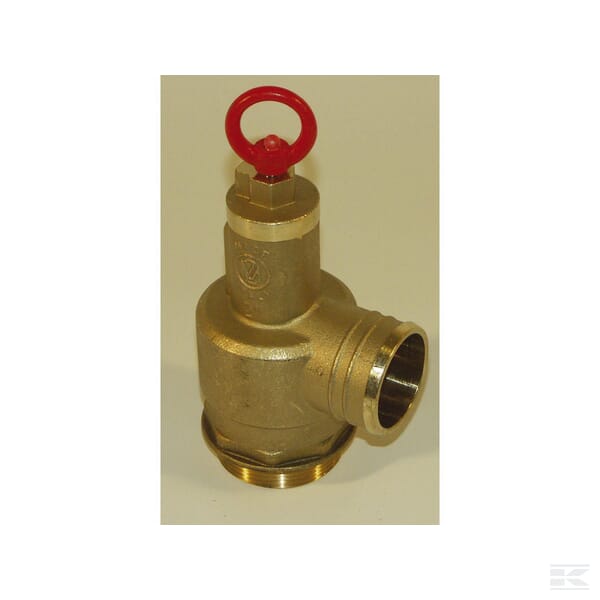

Safety valve 2″

Name: Safety valve 2" - BVS Parts Ltd
SKU: 200013
Price: 75.53 EUR
Availability: InStock

‘- Adjustable pressure relief valve
– Adjustment by loosening the hex socket bolt

0 out of 5

(No reviews yet.)Leave a review

€75.53 Incl. VAT€61.41 Excl. VAT

Product Description

Weight	1204 g
Dimensions	195 × 101 × 71 mm
Connection diameter (mm) \| Valves	47.00 mm
Connection no 2 diameter (mm) \| Valves	43.00 mm
Brand \| Global	MZ
Connection thread diameter (in) \| Valves	2 in
Connection thread length (mm) \| Valves	16.0 mm
Connection thread type \| Valves	BSP
Length L (mm)	36 mm
Length L1 (mm)	64 mm
Max working pressure (bar) \| Valves	1.5 bar
Max working temperature (°C) \| Mechanical/Electrical Valves/Bypass Valves/Overflow Valves	60 °C
Min working temperature (°C) \| Mechanical/Electrical Valves/Bypass Valves/Overflow Valves	-15 °C
Min. working pressure (bar) \| Valves	0.3 bar
Total height (mm) \| Flow Dividers/Valves/Overflow Valves/Alternative Valve	195.0 mm
Total length (mm) \| Mechanical/Electrical Valves/Solenoids/Pressure Regulator Valve/Electric Dividers/Bypass Valves/Overflow Valves/Alternative Valve	100 mm
Weight (kg) \| Mechanical/Electrical Valves/Pressure Regulator Valve/Bypass Valves/Overflow Valves	1.190 kg
