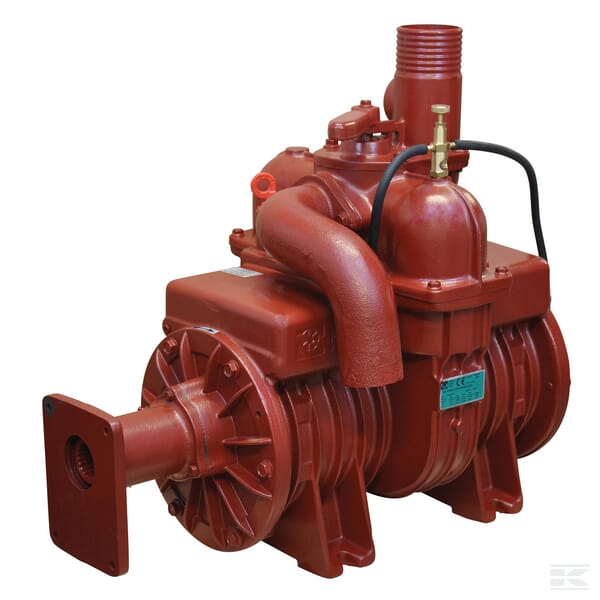

Vacuum pump hydraulic drive B.P.
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take 24-48 hours to deliver. – These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks – As B.P. pumps are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed- These pumps can generate both positive pressure and vacuum
Product Description
Weight | 151500 g |
---|---|
Dimensions | 730 × 620 × 620 mm |
Ballast air injection system | Vacuum Pumps | No |
Crash protection system | Vacuum Pumps | No |
Brand | Global | Battioni Pagani |
Diameter of hose connection (mm) | Vacuum Pumps | 80.0 mm |
Direction of rotation | Starters/Friction Clutches | Clockwise (CW) |
Drive type | Vacuum Pumps | Hydraulic |
Height (mm) | Pumps | 597.0 mm |
Hydraulic motor required capacity (l/min) | Vacuum Pumps | 63.5 l/min |
Lubrication system type | Vacuum Pumps | Forced |
Max vacuum (bar) | Vacuum Pumps | 0.90 bar |
Max. relative pressure (bar) | Vacuum Pumps | 1.5 bar |
Max. shaft rotation (r/min) | Vacuum Pumps | 1400 r/min |
Mounting holes diameter (mm) | Pumps | 15.0 mm |
Mounting holes distance (mm) | Pumps | 227.0 mm, 252.0 mm |
Mounting holes to end distance (mm) | Vacuum Pumps | 196.0 mm |
Mounting holes to shaft end distance (mm) | Vacuum Pumps | 287.0 mm |
Nominal volume flow rate (l/min) | Pumps | 8100.0 l/min |
Power requirement by max. pressure (kW) | Vacuum Pumps | 22.0 kW |
Power requirement by max. vacuum (kW) | Vacuum Pumps | 15.0 kW |
Safety valve connection diameter (in) | Vacuum Pumps | 1-1/2 in |
Shaft centre to bottom distance (mm) | Vacuum Pumps | 164.0 mm |
Shaft centre to left side end distance (mm) | Vacuum Pumps | 195.0 mm |
Shaft centre to right side end distance (mm) | Vacuum Pumps | 215.0 mm |
Total length (mm) | Pumps | 735 mm |
Total width (mm) | Pumps | 410 mm |
Vane type | Vacuum Pumps | Standard |
Weight (kg) | Pumps | 153.000 kg |
