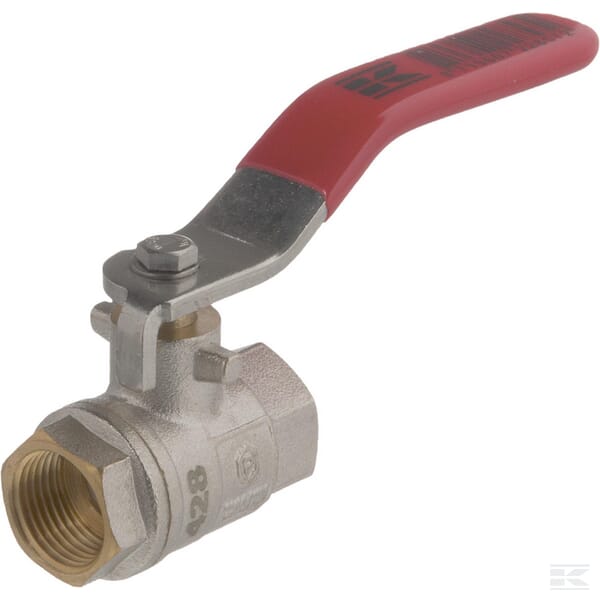

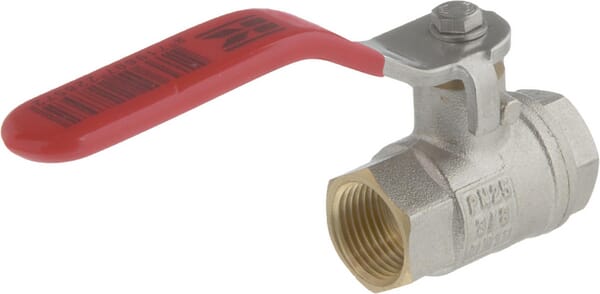

Ball valve BSP 2x female 3/8″ + SS handle

Name: Ball valve BSP 2x female 3/8" + SS handle - BVS Parts Ltd
SKU: KS38FKR
Price: 12.78 EUR
Availability: InStock

‘- 2-way ball valve with full bore
– Nickel-plated brass enclosure (CW617N, DIN 50930-6)
– Ball made from hard chrome-plated brass (CW614N)
– Stainless steel lever and bolt (AISI304)
– PTFE ball seals
– EPDM lever seals
– Conical thread according to ISO 7-1 and DIN 2999-1

Part number: KS38FKR Categories: Farming Supplies, Valves, Water Management

0 out of 5

(No reviews yet.)Leave a review

€12.78 Incl. VAT€10.39 Excl. VAT

Product Description

Weight	115 g
Dimensions	107 × 55 × 25 mm
Connection thread diameter (in) \| Valves	3/8 in
Connection thread length (mm) \| Valves	8.0 mm
Brand \| Global	Kramp
Connection thread type \| Valves	BSPT
Connection type - male/female \| Valves	Female
Distance Top till center bore (mm)	43.1 mm
Handle length (mm) \| Mechanical Valves/Dividers	83.0 mm
Inside diameter (mm)	9 mm
Length A (mm)	8.0 mm
Length B (mm)	8.0 mm
Length C (mm)	83.0 mm
Max working pressure (bar) \| Valves	25.0 bar
Outside diameter (mm)	22.5 mm
Total length (mm) \| Mechanical/Electrical Valves/Solenoids/Pressure Regulator Valve/Electric Dividers/Bypass Valves/Overflow Valves/Alternative Valve	38.5 mm
