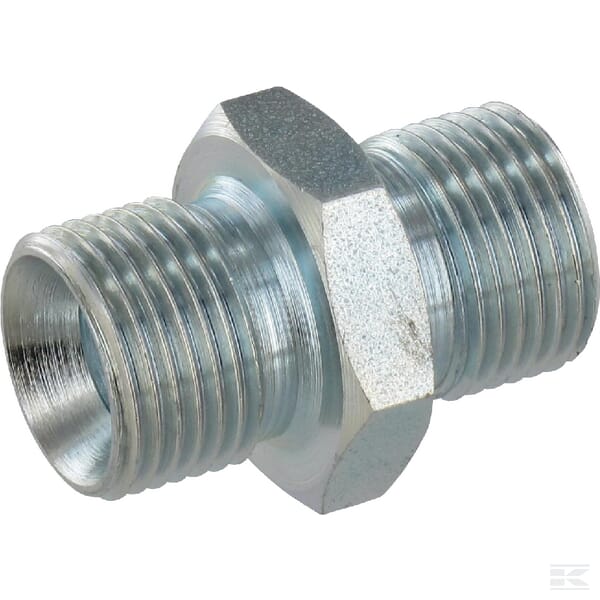

Adaptor M/M-BSP 3/8

Name: Adaptor M/M-BSP 3/8 - BVS Parts Ltd
SKU: DNB06
Price: 2.48 EUR
Availability: InStock

‘- Internal 60º negative
– Only in combination with nipples with counter-cone 60°
– Wide assortment of stainless steel couplings available from stock

0 out of 5

(No reviews yet.)Leave a review

€2.48 Incl. VAT€2.02 Excl. VAT

Product Description

Weight	40 g
Dimensions	33 × 22 × 22 mm
Cone angle (°) \| Couplings	60 °
Connection no 1 thread diameter (in) \| Couplings	3/8 in
Brand \| Global	Burnett & Hillman
Connection no 1 thread type \| Couplings	BSP
Connection no 1 type - male/female \| Couplings	Male
Connection no 1 type \| Couplings/Caps/Plugs	Thread
Connection no 1 wrench size (mm) \| Couplings	22.0 mm
Connection no 2 thread diameter (in) \| Couplings	3/8 in
Connection no 2 thread type \| Couplings	BSP
Connection no 2 type - male/female \| Couplings	Male
Connection no 2 type \| Couplings	Thread
Label colour code \| Gobal	1 – Dark blue
Length (mm) \| Couplings/Lubricators/Oil drains Powered - Nipples/Couplings/Reducers	32.0 mm
Material \| Couplings/Ferrules	Steel
Max working pressure (bar) \| Couplings	380.0 bar
Shape \| Couplings	Straight – 2 connection sides
Surface treatment \| Couplings/Ferrules/Nipples/Reducers	Galvanised
