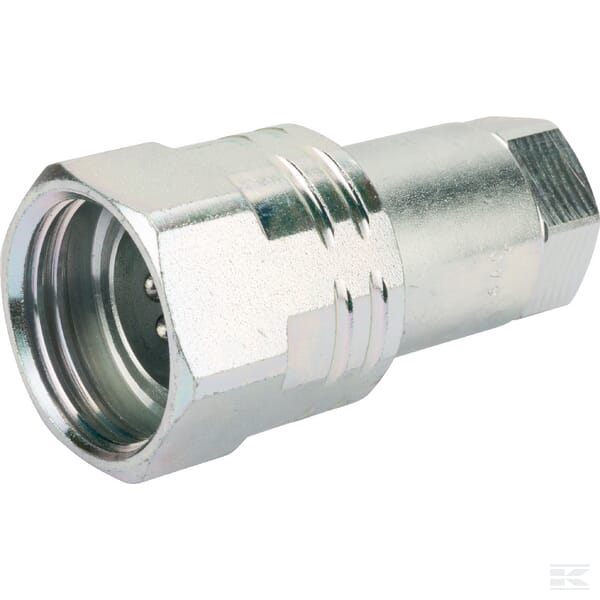

Coupler female 1/2
– Construction machines
– Hydraulic tools
– Industrial
– Mineral oil-based fluids – Suitable for high dynamic loads
– VV sleeves can be coupled with VV or NV plugs (push-pull)
Product Description
| Weight | 303 g |
|---|---|
| Dimensions | 80 × 42 × 38 mm |
| Body size (in) | Quickcouplings push-pull | 1/2 in |
| Body size (mm) | Quickcouplings push-pull | 12.5 mm |
| Brand | Global | Faster |
| Connectable under pressure | Couplings | Yes |
| Connection no 1 diameter (mm) | Couplings/Exhaust Fittings | 42.0 mm |
| Connection no 1 hex size (in) | Couplings | 1.06 in, 1.50 in |
| Connection no 1 hex size (mm) | Couplings | 27.0 mm, 38.0 mm |
| Connection no 1 thread type | Couplings | BSP |
| Connection no 1 type - male/female | Couplings | Female |
| Connection no 1 type | Couplings/Caps/Plugs | Quick coupling |
| Connection no 2 thread diameter (in) | Couplings | 1/2 in |
| Connection no 2 thread type | Couplings | BSPP |
| Connection no 2 threads per inch | Couplings | 14 |
| Connection no 2 type - male/female | Couplings | Female |
| Connection no 2 type | Couplings | Thread |
| Connection no 2 wrench size (mm) | Couplings | 38.0 mm |
| Flow rate at 2 bar (l/min) | Quickcouplings push-pull | 65.0 l/min |
| ISO standard | Couplings | 1179-1 |
| Label colour code | Gobal | 1 – Dark blue |
| Material | Couplings/Ferrules | Steel |
| Max working temperature (°C) | Couplings | 125 °C |
| Min working temperature (°C) | Couplings | -25 °C |
| Outside diameter (in) | Couplings | 1.65 in |
| Outside diameter (mm) | Couplings | 42.00 mm |
| Quick connection locking type | Quickcouplings push-pull | Radial balls, Thread |
| Quick connection working type | Quickcouplings push-pull | Screw, Sleeve retraction |
| Quick disconnection working type | Quickcouplings push-pull | Screw, Sleeve retraction |
| Seal material | Couplings/Nozzles | Nitrile rubber [NBR] |
| Shape | Couplings | Straight – 2 connection sides |
| Surface treatment | Couplings/Ferrules/Nipples/Reducers | Chromium-plated |
| Total length (in) | Couplings | 3.11 in |
| Total length (mm) | Couplings | 78.7 mm |
| Valve type | Couplings | Poppet |
| Weight (g) | Couplings | 307.7 g |
| Working pressure (bar) | Couplings | 250 bar |
