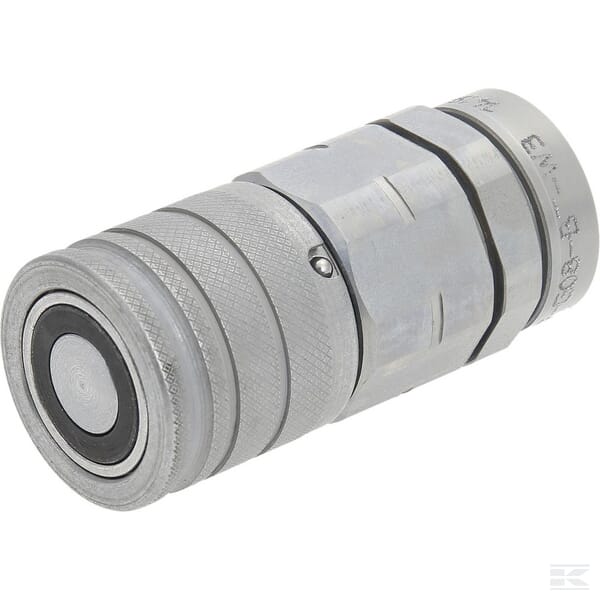

Quick release coupling Female 3/8″ – 1/2″ BSP
– Construction and agricultural machines
– Hydraulic tools
– Applications in sensitive environments
– Mineral oil-based fluids – User-friendly
– Low leakage
– No air pockets during coupling- Locks on both sides
– Utmost corrosion resistance
Product Description
| Weight | 295 g |
|---|---|
| Dimensions | 76 × 32 × 32 mm |
| Body size (in) | Quickcouplings push-pull | 3/8 in |
| Connectable under pressure | Couplings | No |
| Brand | Global | DNP |
| Connection no 1 diameter (mm) | Couplings/Exhaust Fittings | 19.8 mm |
| Connection no 1 type - male/female | Couplings | Female |
| Connection no 1 type | Couplings/Caps/Plugs | Quick coupling |
| Connection no 2 thread diameter (in) | Couplings | 1/2 in |
| Connection no 2 thread type | Couplings | BSP |
| Connection no 2 threads per inch | Couplings | 14 |
| Connection no 2 type - male/female | Couplings | Female |
| Connection no 2 type | Couplings | Thread |
| Flow rate at 2 bar (l/min) | Quickcouplings push-pull | 50.0 l/min |
| ISO standard | Couplings | 16028 |
| Label colour code | Gobal | 1 – Dark blue |
| Material | Couplings/Ferrules | Steel |
| Max working temperature (°C) | Couplings | 100 °C |
| Min working temperature (°C) | Couplings | -30 °C |
| Outside diameter (mm) | Couplings | 32.0 mm |
| Seal material | Couplings/Nozzles | Nitrile rubber [NBR], Teflon (PTFE) |
| Shape | Couplings | Straight – 2 connection sides |
| Size code | Caps/Plugs/Couplings | BG 2 |
| Surface treatment | Couplings/Ferrules/Nipples/Reducers | Nickel, Zinc |
| Total length (mm) | Couplings | 74.0 mm |
| Working pressure (bar) | Couplings | 350 bar |
