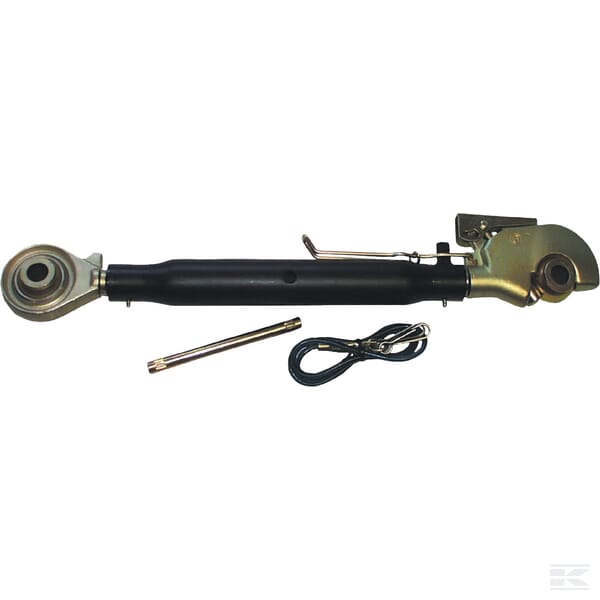

Toplink with hook M30 category 2

Name: Toplink with hook M30 category 2 - BVS Parts Ltd
SKU: TLC3903022KR
Price: 99.35 EUR
Availability: InStock

– M30 for tractors up to 75 kW
– M36 for tractors up to 135 kW

Part number: TLC3903022KR Categories: Linkage, Tractor & Trailer Parts, Tractor Parts

0 out of 5

(No reviews yet.)Leave a review

€99.35 Incl. VAT€80.77 Excl. VAT

Product Description

Weight	8000 g
Dimensions	690 × 130 × 80 mm
Category by machine side \| Top Links/Side Stabilizers	2
Category by tractor side \| Top Links/Side Stabilizers	2
Brand \| Global	Kramp
Connection hole diameter by machine side (mm) \| Top Links/Side Stabilizers	25.7 mm
Connection hole diameter by tractor side (mm) \| Top Links/Side Stabilizers	25.7 mm
Connections category \| Top Links	Eye – Hook
Hook head length (mm) \| Top Links	100 mm
Max working length (mm) \| Top Links	785.00 mm
Min working length (mm) \| Top Links	575.00 mm
Rod length (mm) \| Top Links/Cylinders - Rods	390.0 mm
Thread diameter (metric) \| Top Links/Top Links - Ends/Top Links - Tubes/Side Stabilizers	M30
Thread pitch (mm) \| Top Links/Top Links - Ends/Top Links - Tubes/Side Stabilizers/Cylinders - Join Heads	3.50 mm
Thread type \| Top Links/Top Links - Tubes/Top Links - Ends	Metric
Yoke head length (mm) \| Top Links	60.0 mm
