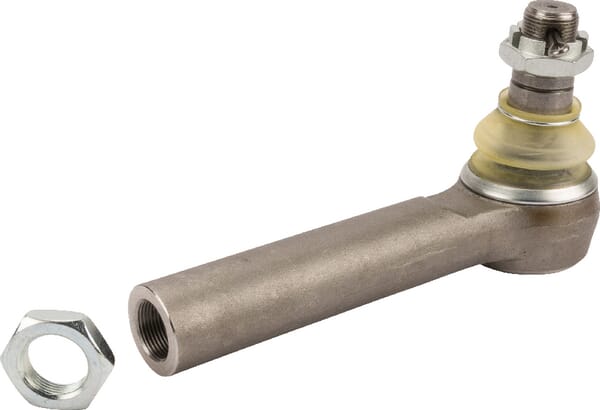

Tie rod end

Name: Tie rod end - BVS Parts Ltd
SKU: SHP209KR
Price: 71.69 EUR
Availability: InStock

Part number: SHP209KR Categories: Steering Parts, Tractor & Trailer Parts, Tractor Parts

0 out of 5

(No reviews yet.)Leave a review

€71.69 Incl. VAT€58.28 Excl. VAT

Product Description

Weight	2320 g
Dimensions	245 × 129 × 76 mm
Curved \| Arms/Rods with Ball Ends	No
End cone length (mm) \| Arms/Rods with Ball Ends	32.00 mm
Brand \| Global	Kramp
Head width (mm) \| Arms/Rods with Ball Ends	40.0 mm
Max. connection diameter (mm) \| Arms/Rods with Ball Ends	30.20 mm
Min. connection diameter (mm) \| Arms/Rods with Ball Ends	27.00 mm
Outside rod diameter (mm) \| Arms/Rods with Ball Ends	36.0 mm
Thread diameter - end side (metric) \| Arms/Rods with Ball Ends	M24
Thread diameter - rod side (metric) \| Arms/Rods with Ball Ends	M24
Thread direction - end side \| Arms/Rods with Ball Ends	Right
Thread direction - rod side \| Arms/Rods with Ball Ends	Right
Thread length - end side (mm) \| Arms/Rods with Ball Ends	26.6 mm
Thread length - rod side (mm) \| Arms/Rods with Ball Ends	75.0 mm
Thread pitch - end side (mm) \| Arms/Rods with Ball Ends	1.50 mm
Thread pitch - rod side (mm) \| Arms/Rods with Ball Ends	1.50 mm
Thread type - end side \| Arms/Rods with Ball Ends	Metric
Thread type - rod side \| Arms/Rods with Ball Ends	Metric
Total length (mm) \| Arms/Rods with Ball Ends/Levers	195 mm
Working length (mm) \| Arms/Rods with Ball Ends/Levers	195.0 mm
